Telaire Ventostat CO2 Humidity and Temperature Sensors


Telaire Ventostat 		The Telaire Ventostat® CO2 Humidity and Temperature Sensors are ideally suited for Demand Controlled Ventilation (DCV) in buildings.
The 8000 series sensor measures CO2, humidity and temperature concentrations all in one and can be utilized as an indicator of occupancy. This approach drives a ventilation control strategy based on actual occupancy while maintaining ASHRAE recommended per-person ventilation rates. Over-ventilation can be reduced, energy can be saved, and air quality can be optimized by including the Ventostat® CO2 Sensor in your next project.


Product Description
The 8000 series sensors are low profile, unobtrusive, and designed for installation in any office space or conference room. The Ventostat® controller includes a dual analog output (0-10V and 4-20mA), a mounting/wiring sub-base, and a Lifetime Calibration Guarantee. All 8000 Series sensors offer a SPDT relay (normally open or closed) and can be custom programmed to a specific measurement and output range using the UIP software interface or on-board keypad (display units). The Telaire 8000 Ventostat series is available in a number of configurations. The primary configuration is determined by the type of CO2 sensor included.

Click on the Comparison Chart below to view the Ventostat® product line at a glance.

Click Here for Comparison Chart

Features & Benefits
  • Patented Absorption Infrared/Gas sensing provides high accuracy in a compact low cost package.
  • Patented ABC Logic™ self-calibration system eliminates the need for manual calibration in most applications.
  • Lifetime CO2 calibration guarantee when using ABC Logic™
  • Mounting plate with two-piece terminal blocks provide quick, easy wiring.
  • Gas permeable, water resistant diffusion filter prevents particulate and water contamination of the sensor.
  • Locking screw secures cover and sensor to the mounting bracket for tamper resistance.
  • Dual simultaneous analog output (V & mA).
  • Sensors are shipped factory calibrated
  • Temperature sensor on all models
  • Modern enclosure with customized branding available.
  • CO2, humidity and temperature models.
  • Two-piece design allows unit to be replaced without the need for rewiring.
Related Products

  Ventostat 8001 CO2 Sensor No Display - For use in commercial buildings for demand controlled ventilation.
Key Specifications:
  • Measures 0-2,000 PPM
  • Power Requirements 18-30VAC RMS
  • Easy Installation
  • No display
  • Wall Mount
  • Calibration Guarantee

  Qty


  Ventostat 8002 CO2 Sensor with Display - For use in commercial buildings for Demand Controlled Ventilation.
Key Specifications:
  • Measures 0-2,000 PPM
  • Power Requirements 18-30VAC RMS
  • Easy Installation
  • Programmable via Display and Keypad
  • Calibration Guarantee

  Qty


  Ventostat 8102 CO2 Sensor with Display - Ideal for use in applications where CO2 monitoring and control are required for a 24/7 period.
Key Specifications:
  • Measures 0-2,000 PPM
  • Power Requirements 18-30VAC RMS
  • Easy Installation
  • Programmable via Display and Keypad

  Qty


  Ventostat 8001B CO2 Sensor No Display - Wall or In-Duct Mount for use in commercial buildings for demand controlled ventilation. Display and keypad allows for sensor programming without software.
Key Specifications:
  • Conformal coated electronics
  • Measures 0-2,000 PPM
  • Power requirements 18-30VAC RMS
  • Calibration guarantee
  • Wall or in duct mount
  • No display

  Qty


  Ventostat 8002B CO2 Sensor with display - Wall mount or In-Duct Mount For use in commercial buildings for demand controlled ventilation. Display and keypad allows for sensor programming without software.
Key Specifications:
  • Conformal coated electronics
  • Measures 0-2,000 PPM
  • Power requirements 18-30VAC RMS
  • Calibration guarantee
  Price
  Qty


  Ventostat 8102B CO2 Sensor with display - For use in commercial buildings for Demand Controlled Ventilation.
Key Specifications:
  • Conformal coated electronics and high temperature plastic enclosure allows for induct mounting.
  • Measures 0-2,000 PPM
  • Power requirements 18-30VAC RMS
  • Calibration guarantee

  Qty




  Calibration Kit - Model 2075NG
The Calibration Kit model 2075 includes all of the necessary components for calibrating the Telaire® and Ventostat® CO2 sensor models. The kit is housed in a carrying case with only one replacement part (calibration gas) required. A 16 liter gas bottle (not supplied) can perform up to 20 calibrations.
*Requires Disposable Gas Tank: CGA600, 99.95% Nitrogen 20bar fill pressure, one litre approx.

  Qty



  T2075NG Calibration kit without nitrogen tank - Model T2075NG
The Calibration Kit model T2075NG calibrates the Telaire® and Ventostat® CO2 sensor models. The kit is housed in a carrying case with only one replacement part (calibration gas (not supplied)) required. A 16-liter gas bottle (not supplied) can perform up to 20 calibrations.
  • Requires disposable Gas Tank: CGA600, 99.95% Nitrogen 20bar fill pressure, one liter approx.
  • Please note: Gas tanks cannot be shipped outside of the US

  Qty

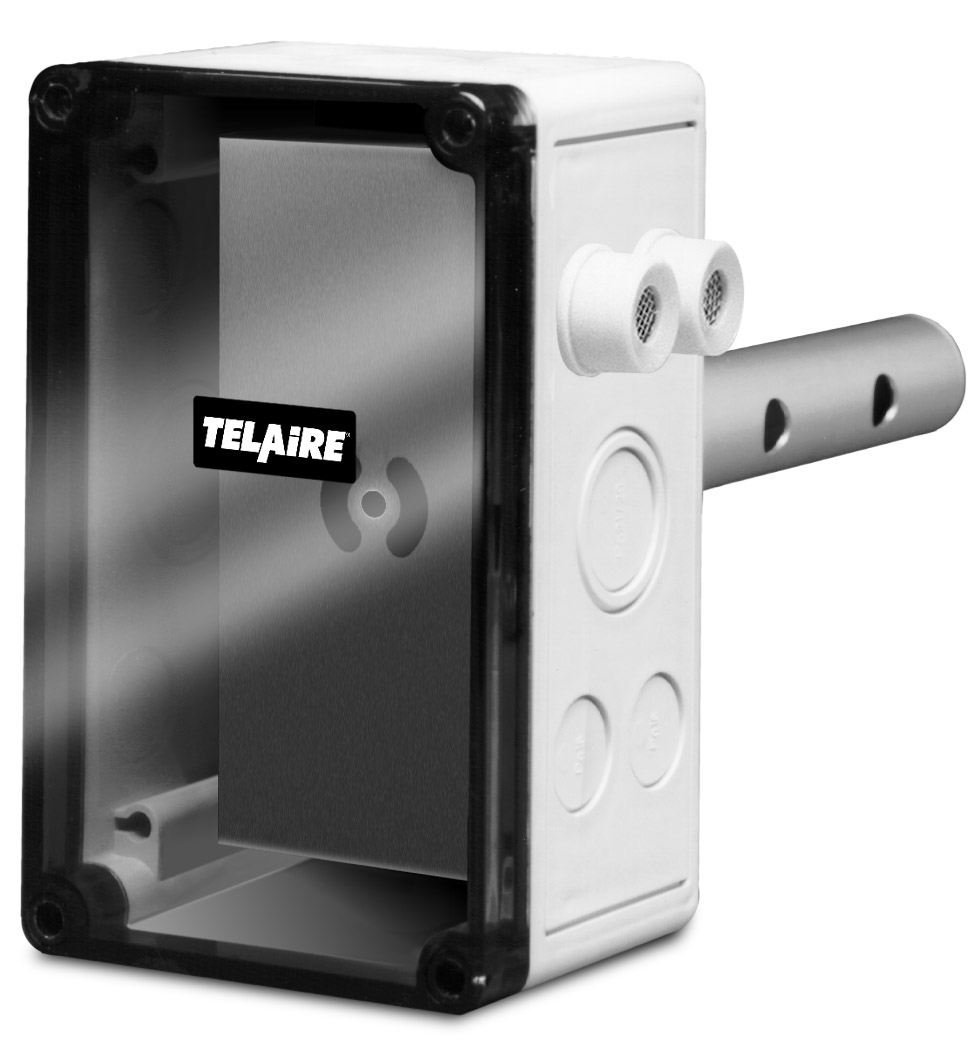

  Aspiration Box 1508 - Converts standard wall mount (or induct) sensors to standard duct mount. Aspiration based duct sampling enclosure with see-through cover.

  Qty



  Outside Air 1551 - Rugged weatherproof enclosure (ABS plastic), designed to protect sensor from excessive moisture or water spray. It is ideal for monitoring outside air or CO2 as a surrogate for combustion fumes in parking garages, tunnels and loading docks.

  Qty



  Water Resistant 1505 - Wall mount NEMA 3-R enclosure to protect sensor from excessive moisture or water spray. ABS plastic enclosure, four diffusion ports allow for entry of CO2, knockouts are provided for conduit connection.

  Qty



  CO2 View 2080 - - Graphing Software
Software program that displays and graphs real-time CO2 levels at a user adjustable time interval. The program records CO2 levels in a sequential format but does not record the time of the measurement. CO2View™ allows the user to perform a zero and span calibration (gases sold separately) on the Telaire® 7001 CO2 sensor. Supplied with interface cable.

  Qty



  UIP8000 2072 - Software for calibration and programming sensor parameters. Compatible with Windows™ 2000/NT/98-95. Includes interface cable

  Qty
